The elements
They give us what we have to work with on an engineering scale

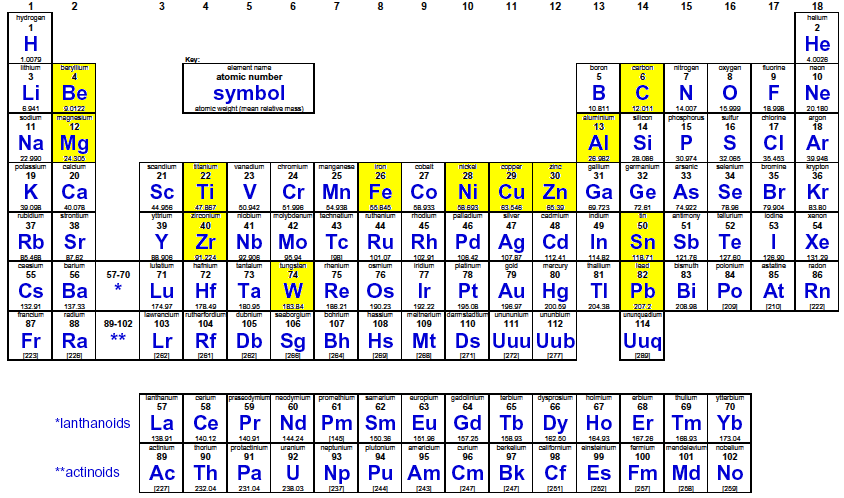

The elements - structural engineering coloured

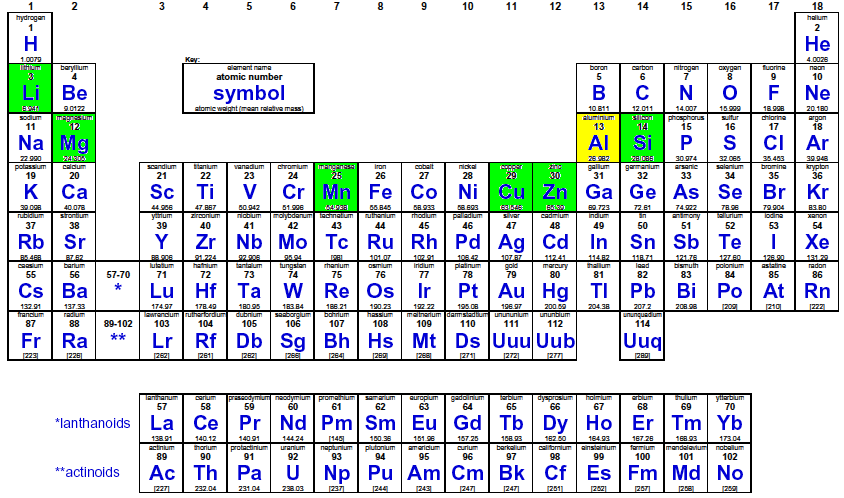

Looking at Aluminium (yellow) - some common alloying elements (green)

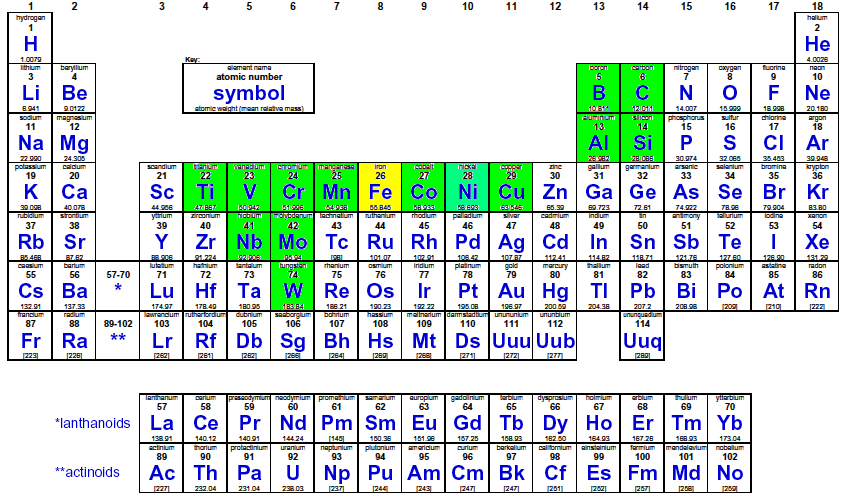

Contrasting to a significant competitor:
Ni has been highlighted (cyan). You can very much convert
the "primary" nature of Fe with about 10m%Ni: BCC Fe -> FCC alloy
(tough)
Iron - characteristics (cheap & cheap & cheap!!!)
Some remarkable features of Fe which lower its cost of application
massively:
- has allotropic phase transformation -> all sorts of processing tricks
- oxide melting point is lower than metal melting point
- v.v.v.cheap to extract
- v.easy to fusion-weld
However:
- "defective" crystal structure -> inherently impaired toughness
- OTOH it machines very easily and as associated with allotropy,
couples to turn hardness on-or-off as easily as a switch
Aluminium - "primary" characteristics
- no allotropic phase changes
- F.C.C., so inherently tends to toughness
- High S.F.E. (stacking-fault energy) so not easy to harden
- low elastic modulus c.f. Fe, which is "blessed" in this regard
- low density (~2.5g/cm^3) (vs ~7.9g/cm^3 for steel)
- refractory adherent oxide -> corrosion resistance, adhesive bonding
Where does this lead in the applications of Aluminium?
- low density - 1/3rd density of steel and typically > 1/3rd
of strength, so application when looking to light weight
- (in mass-critical applications, rigidity propto d^4 tends to overwhelm Elastic Mod. issue)
- tendency to toughness
Whenever weight causes a constant addition to
cost-in-service you are likely to look to Aluminium
Now let us look to processing routes, how they fit with the
properties, the economics and where this gets us with applications
Pictures presentation - casting
