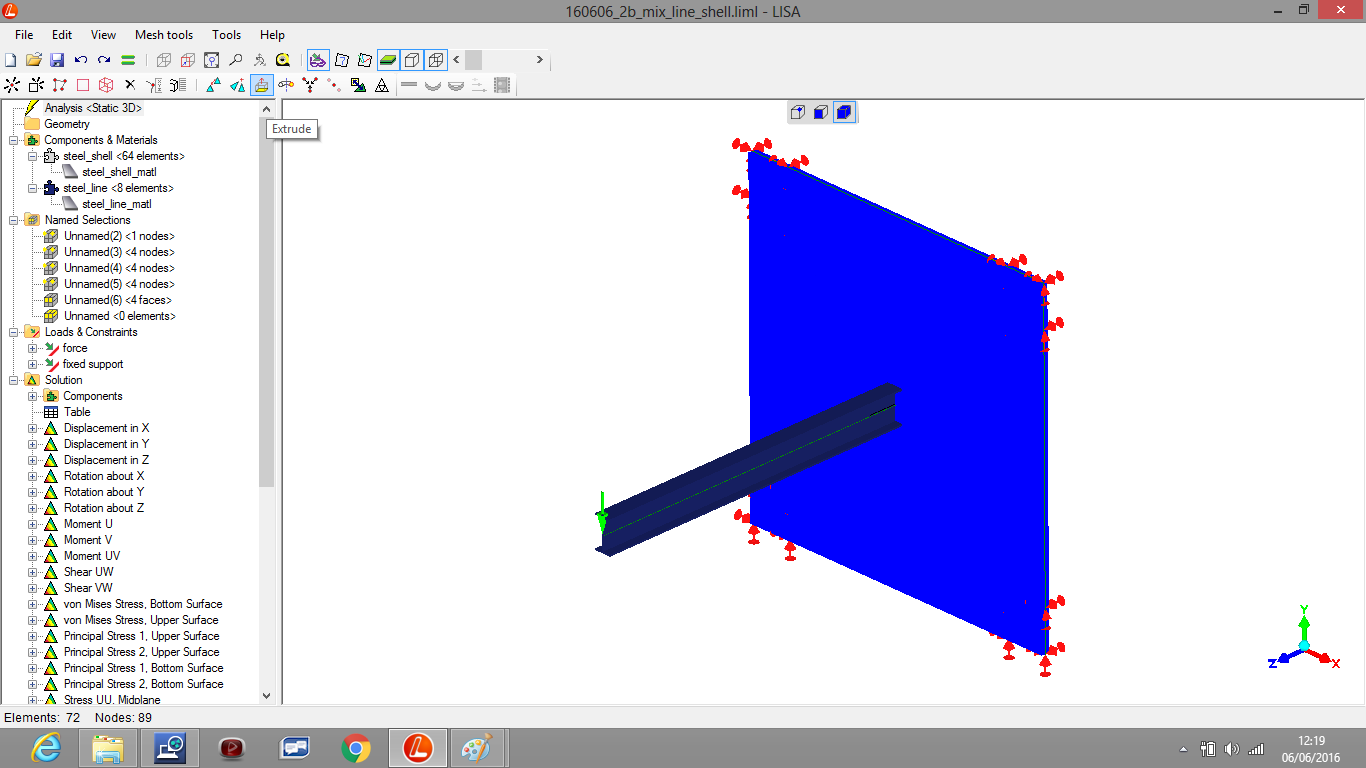

Mixed line-element and shell-element FEA model
I've chosen to say "model", not "simulation", because no checks have
been done on these :
- "convergence"
- peer-review
- lookover / sleep-on-it
- etc
For "plausibility", I simulated with different plate thicknesses
- 20mm -> "too thin" - negligible deformation of beam - all movement
was rotation distorting the plate
- 100mm -> "too thick" - all deformation was bending of the beam -
plate had negligible distortion

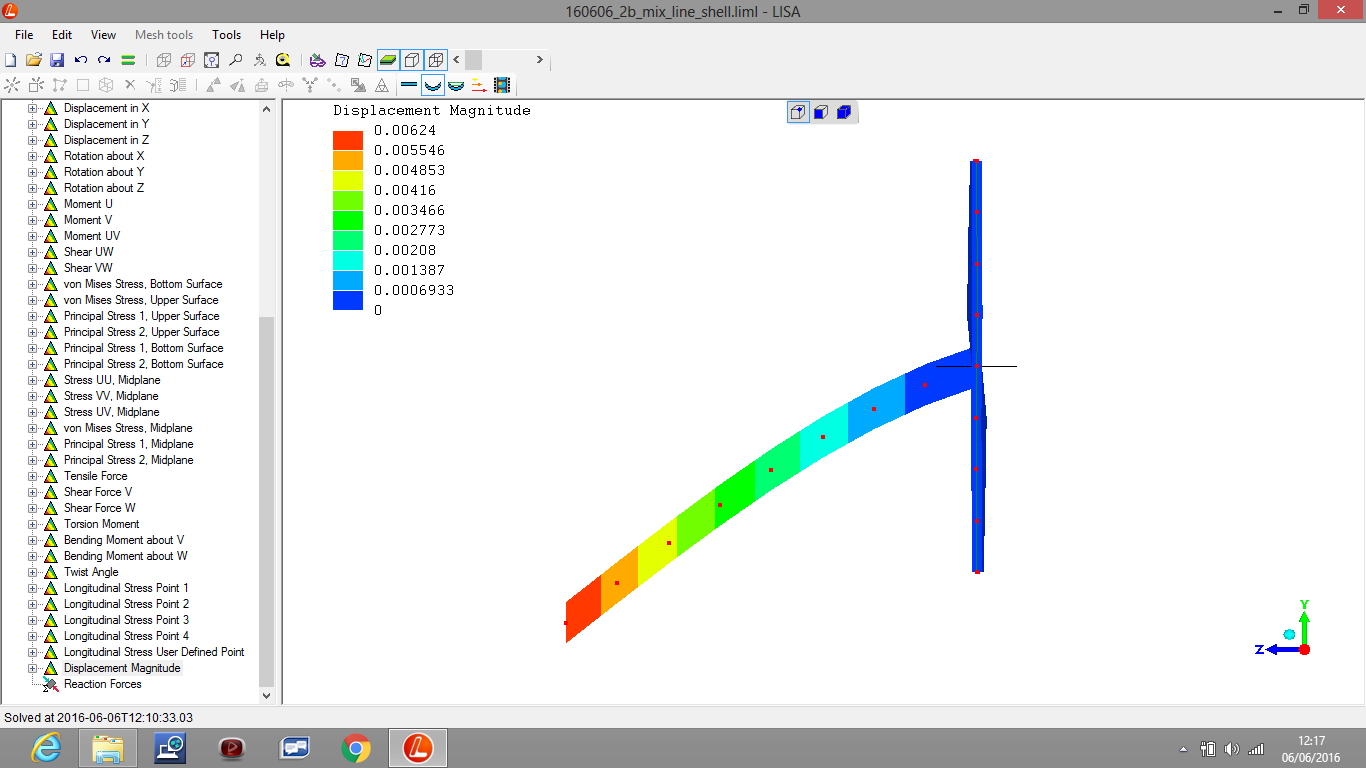

- 50mm -> "matched" = this case - both beam and plate distort
(R. Smith, 06Jun2016)
