My first ever FEA simulation!

I followed the first LISA FEA tutorial ("Tutorials -> Analysis types -> Static").

The program responded!

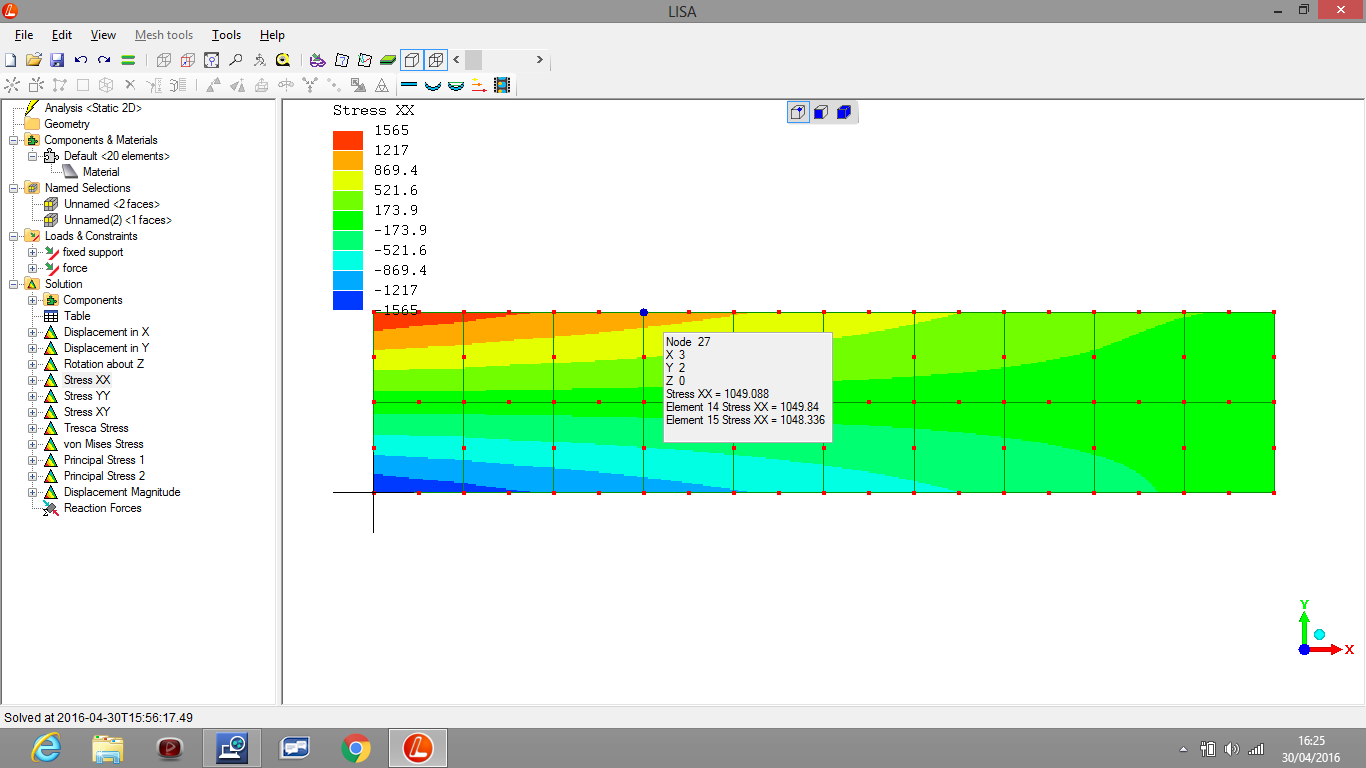

Here it is - my first ever Finite Element Analysis (FEA) simulation:

It is special only to me...

The result is identical to the tutorial's result.
That tutorial example is very simple
(another thing I like about LISA FEA tutorials and descriptions; they start you off with incredibly simply cases where an on-paper mathematical solution is know and you can check your result).



(R. Smith, 17May2016)
